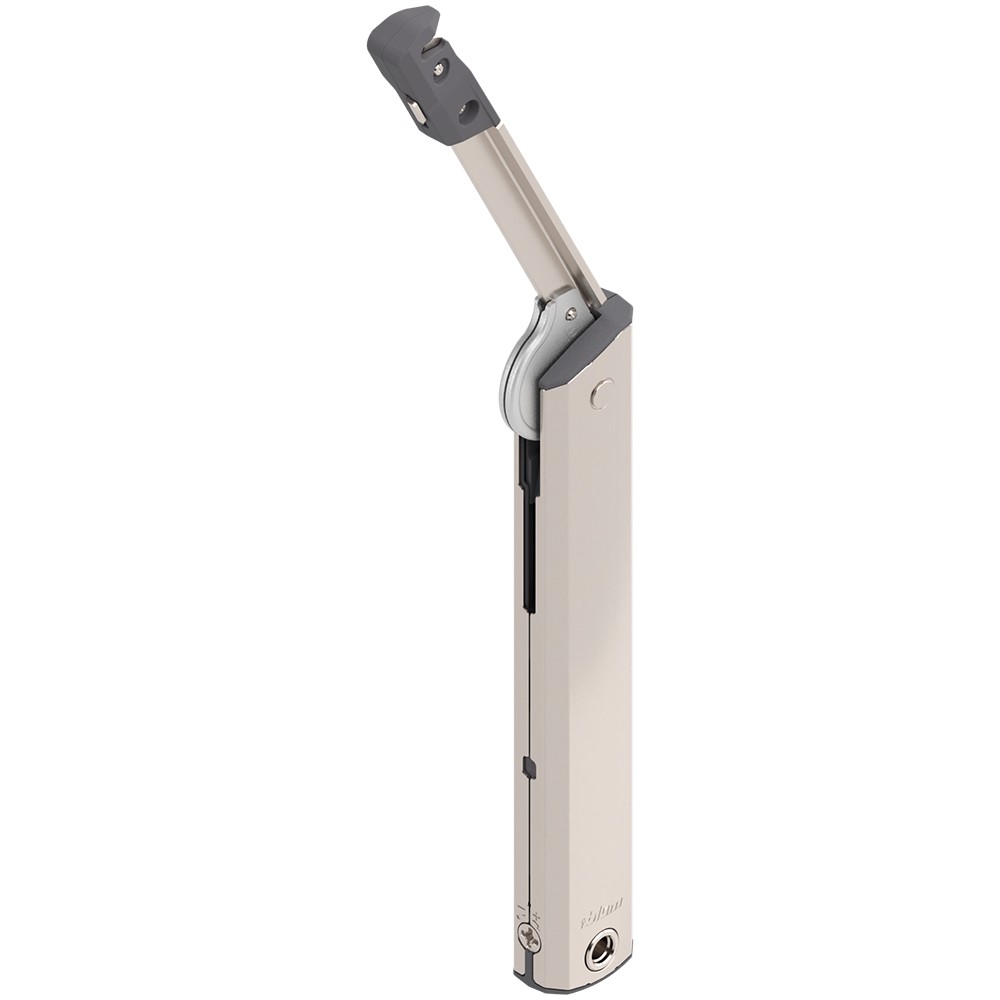

Blum Aventos HK-XS Blumotion lift mechanism for doors

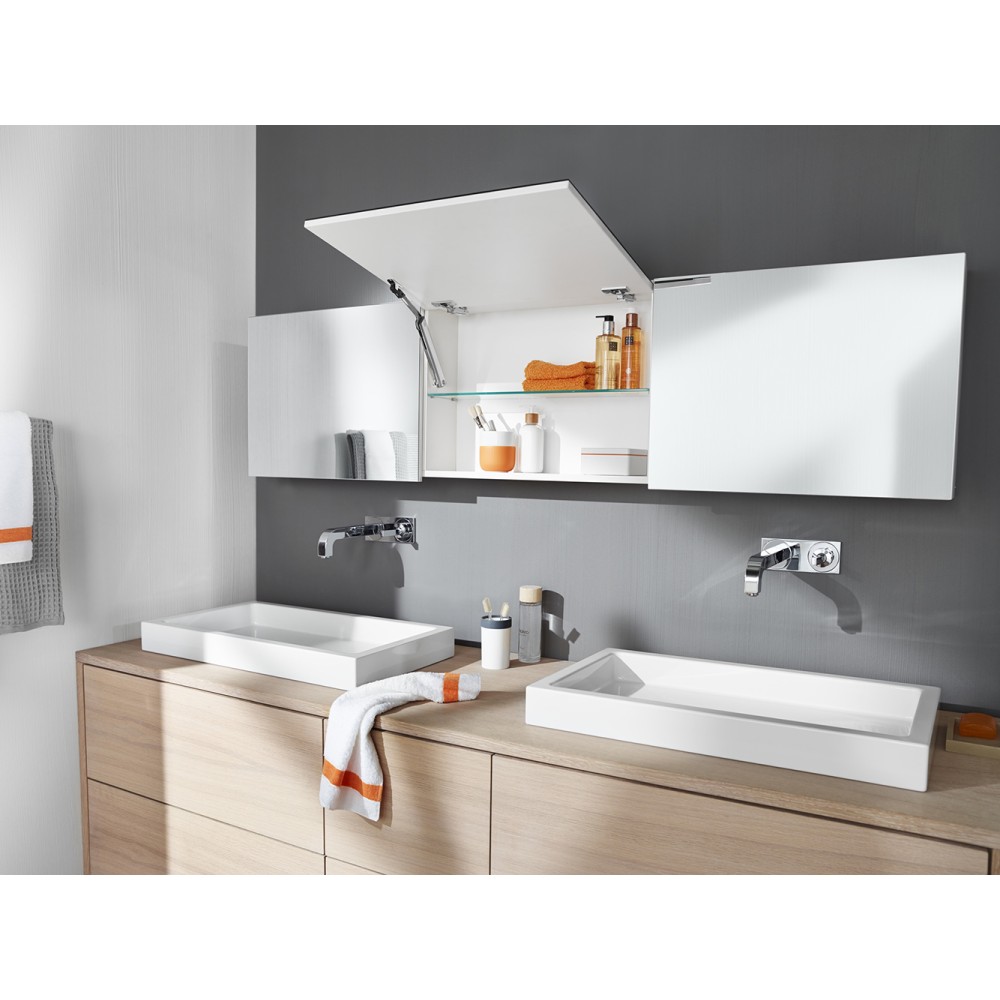

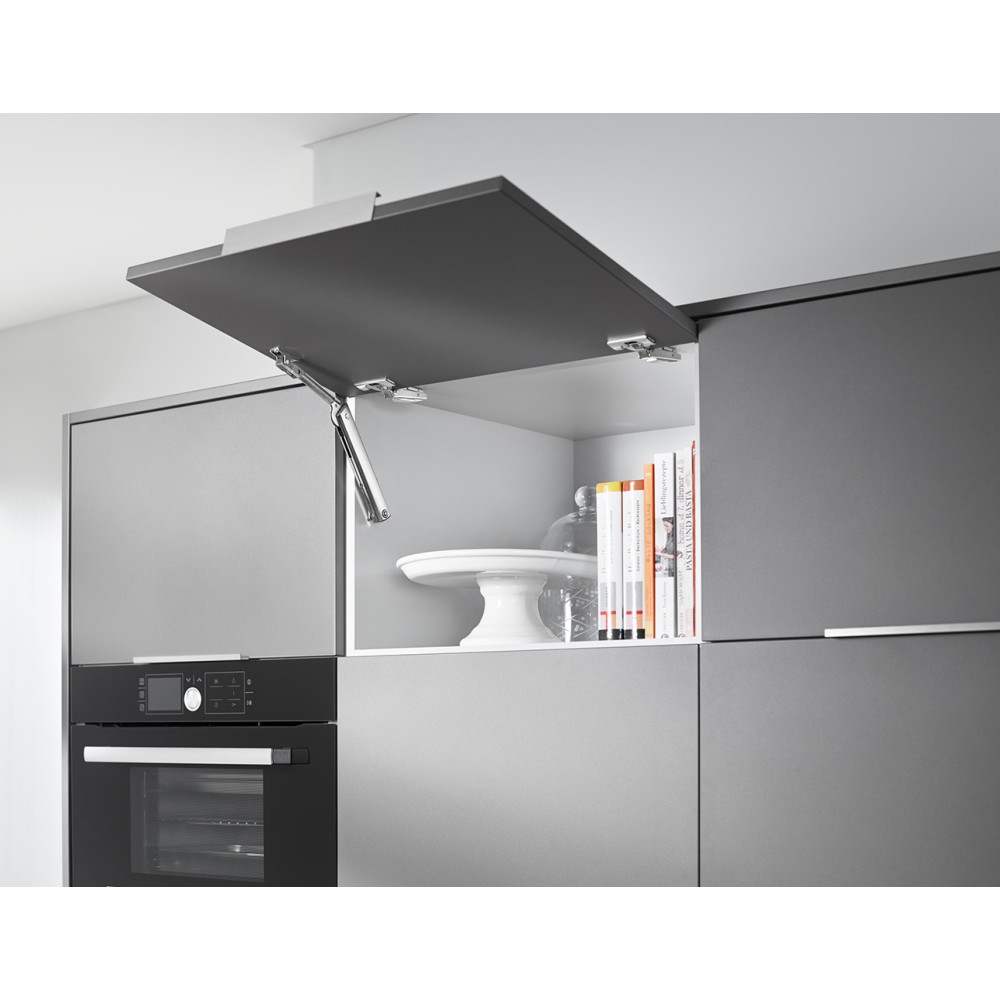

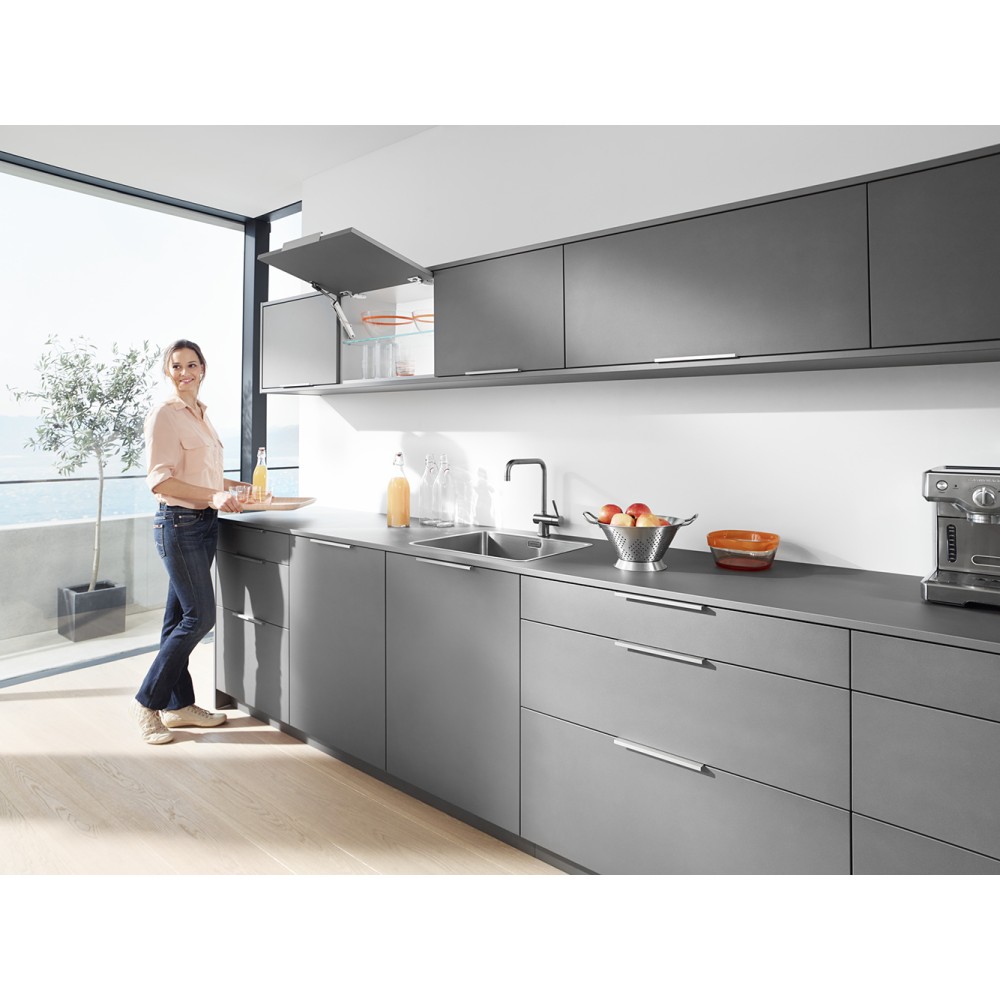

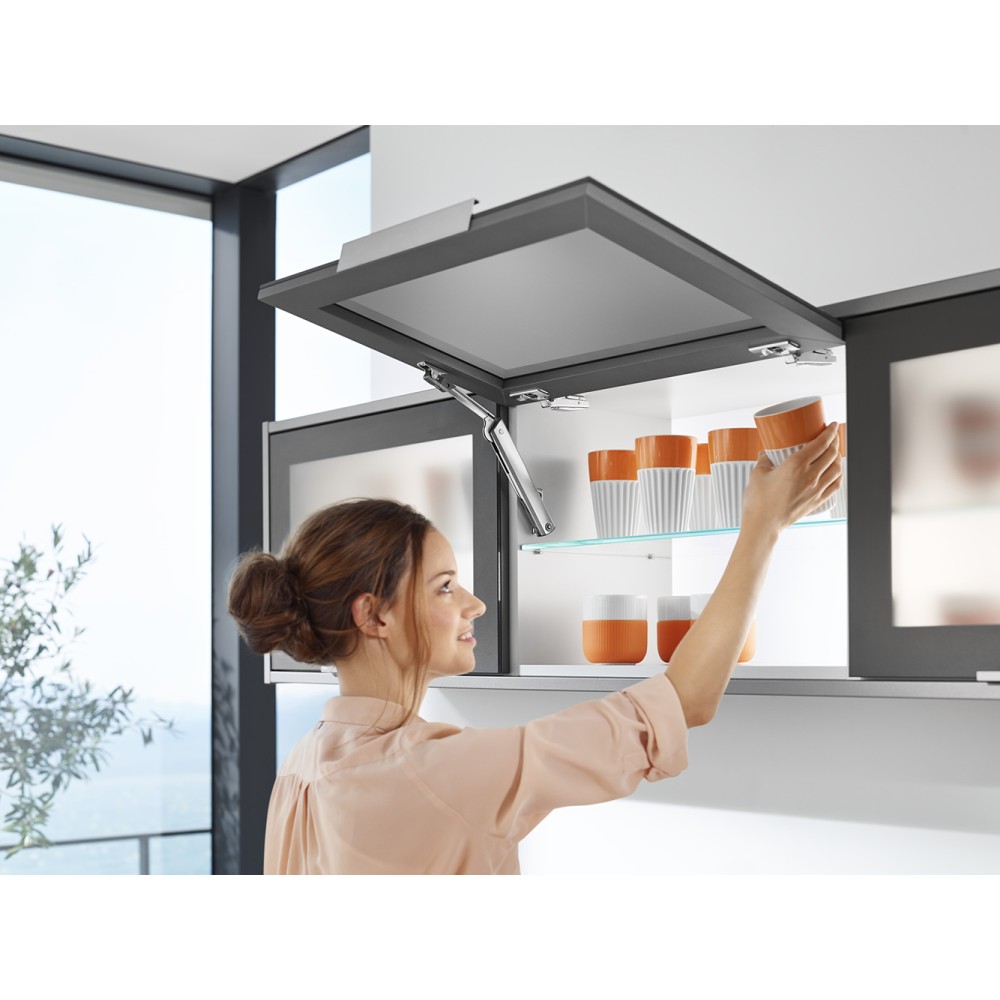

Blum Aventos HK-XS lift mechanism with integrated soft-close BLUMOTION.

• Minimum internal cabinet depth: 100 mm
• Symmetrical (reversible)
• Hinges with integrated BLUMOTION

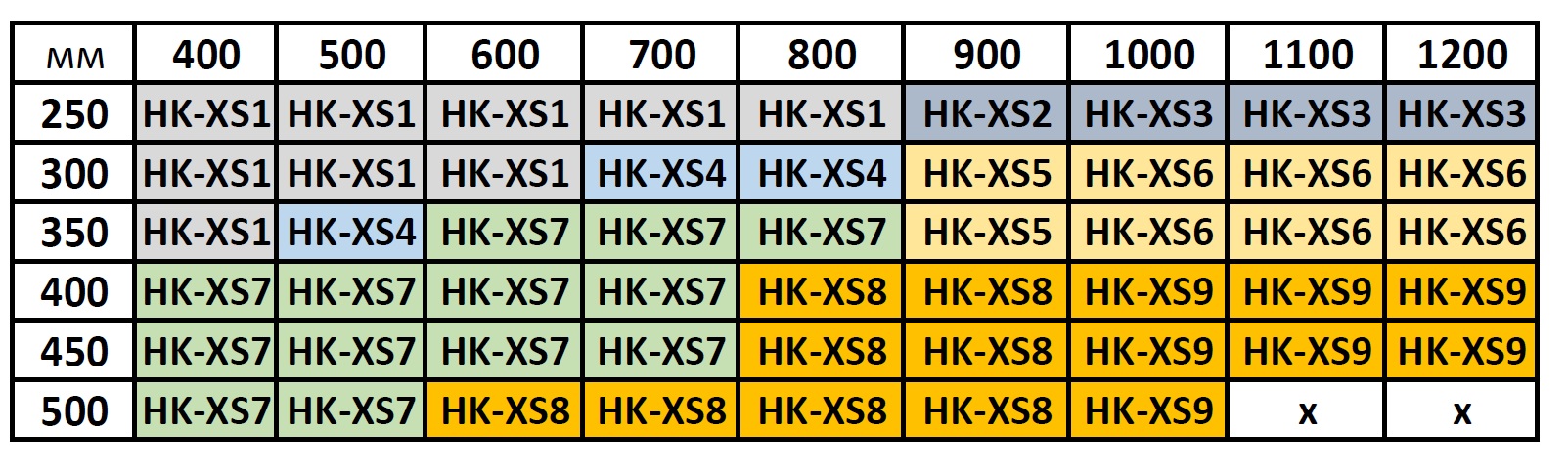

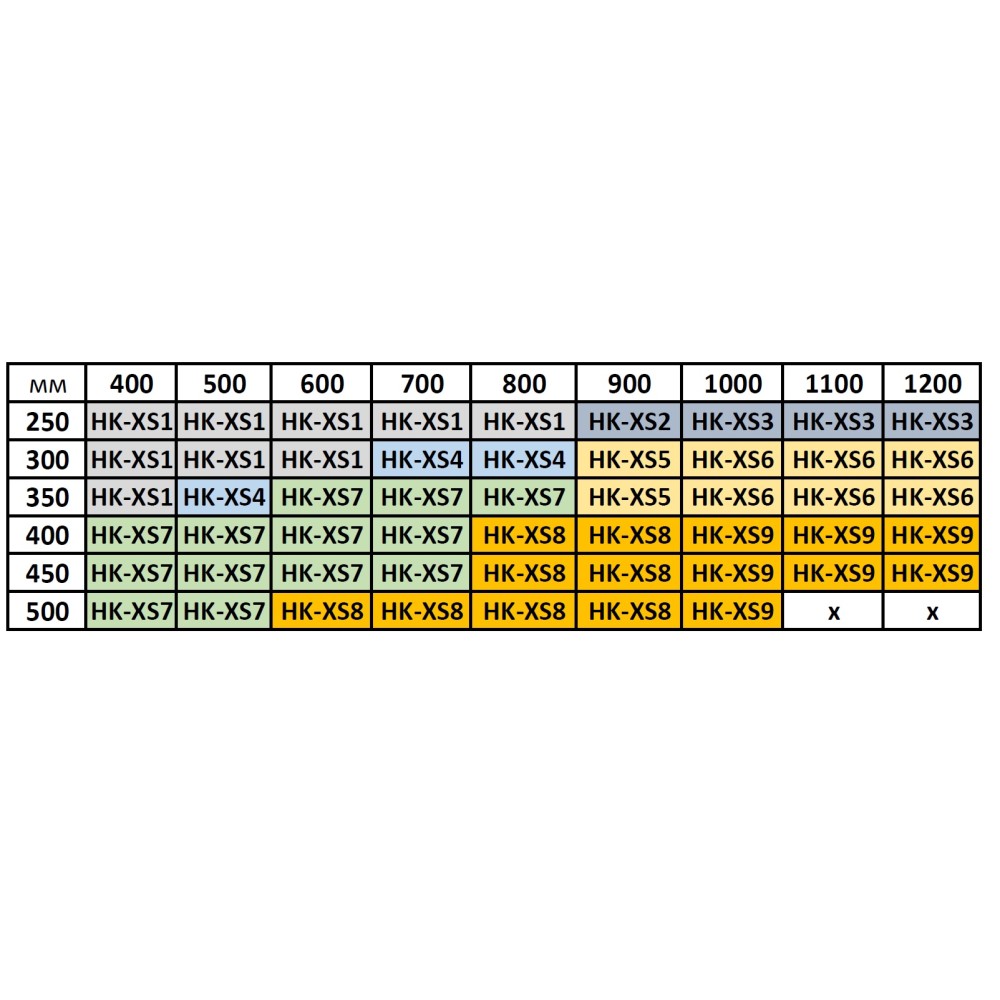

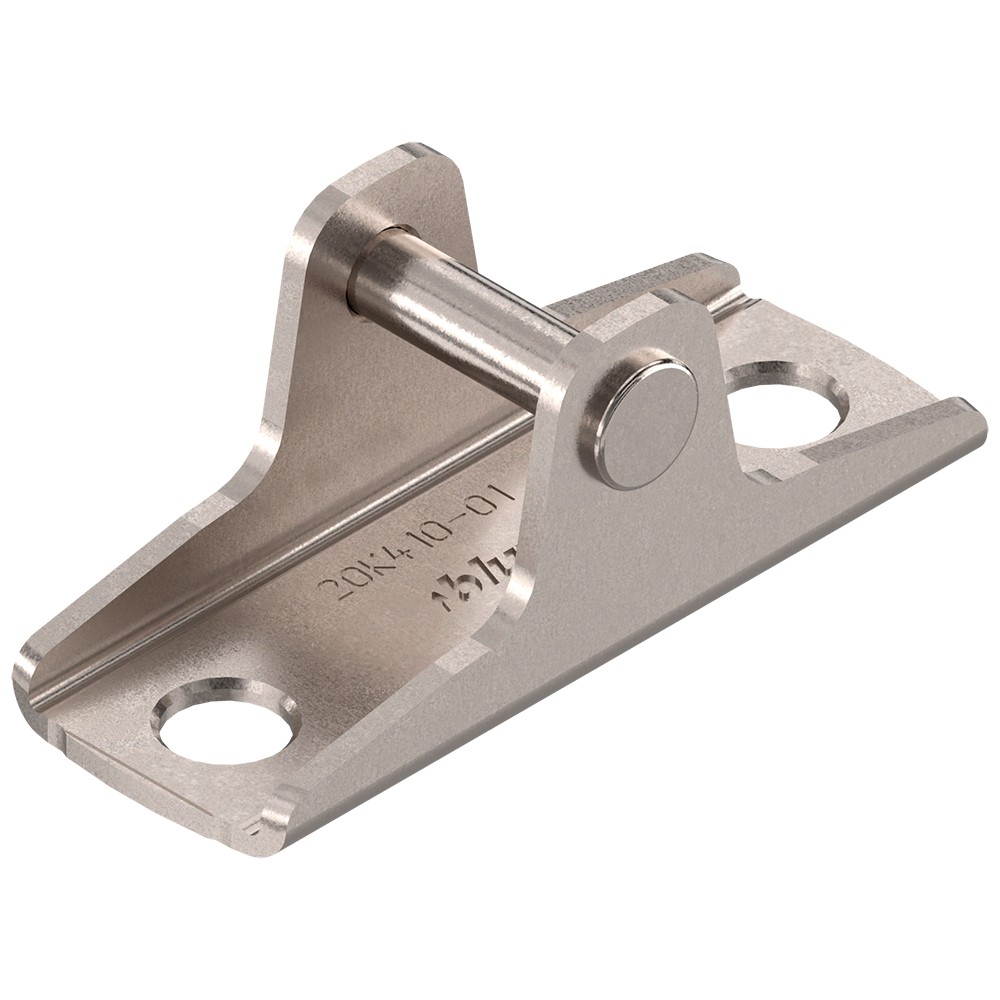

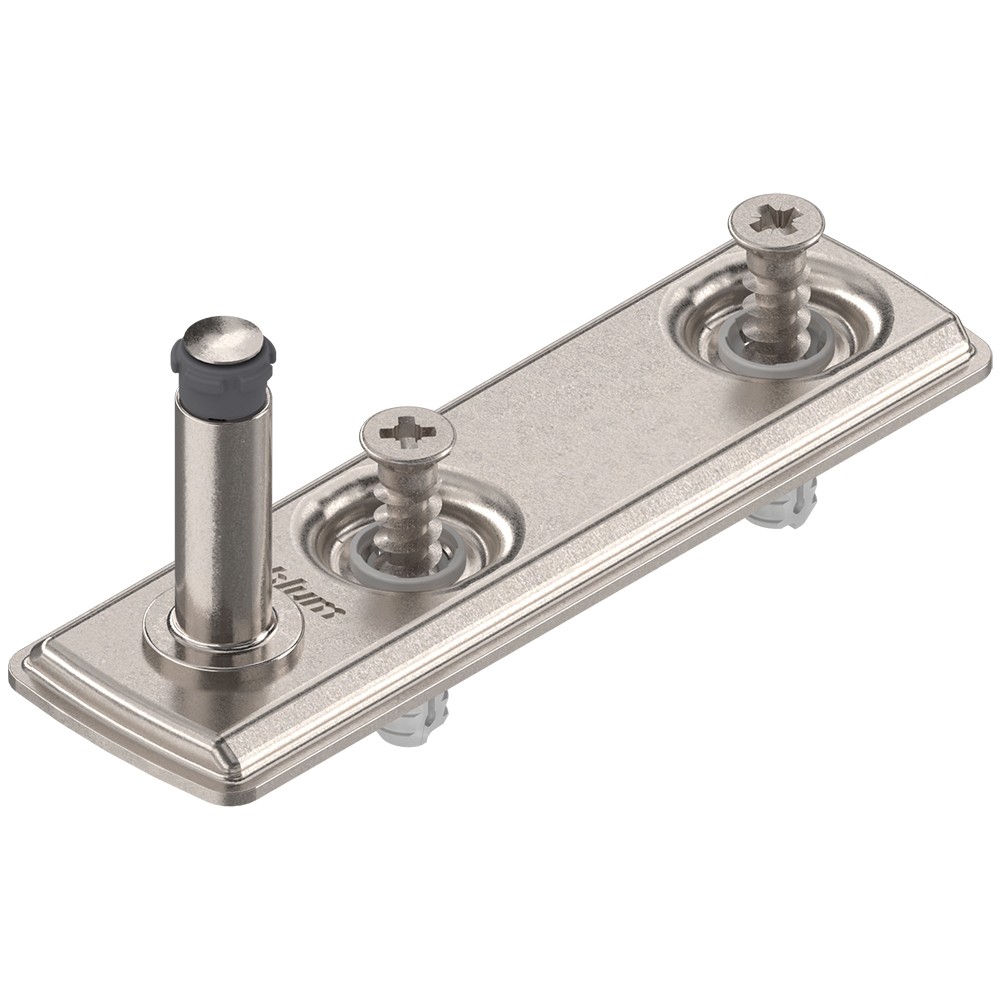

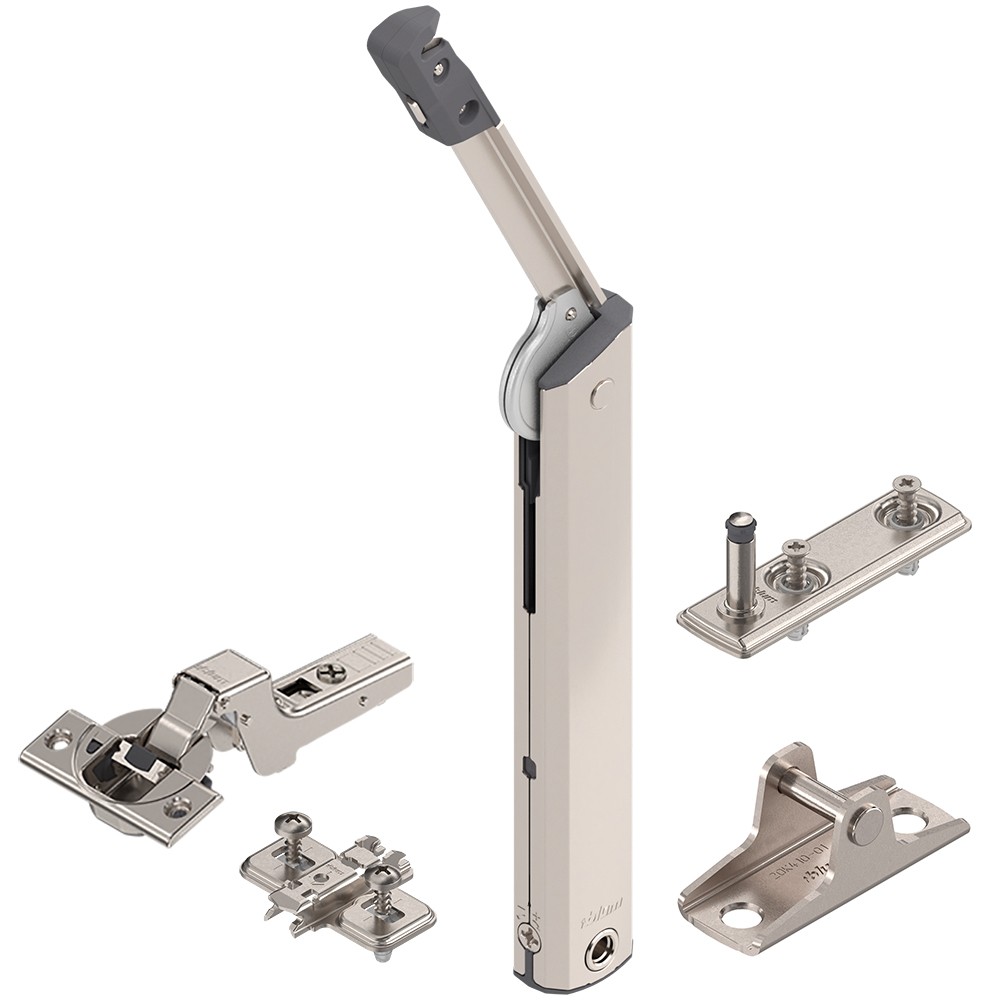

The set includes: 1 or 2 Aventos HK-XS 20K**** power mechanisms (depending on power factor); 1 or 2 cabinet mounting plates and door mounting plates (matching the number of power mechanisms); and 2 or 3 CLIP TOP 110° hinges (71B3*50) with BLUMOTION and mounting plates (174H7100)—featuring 3D adjustment and dowel mounting (configuration depends on the selected power factor and application type: full overlay, half overlay, or inset). The kit contains everything required for installation, no additional mandatory components need to be purchased.
