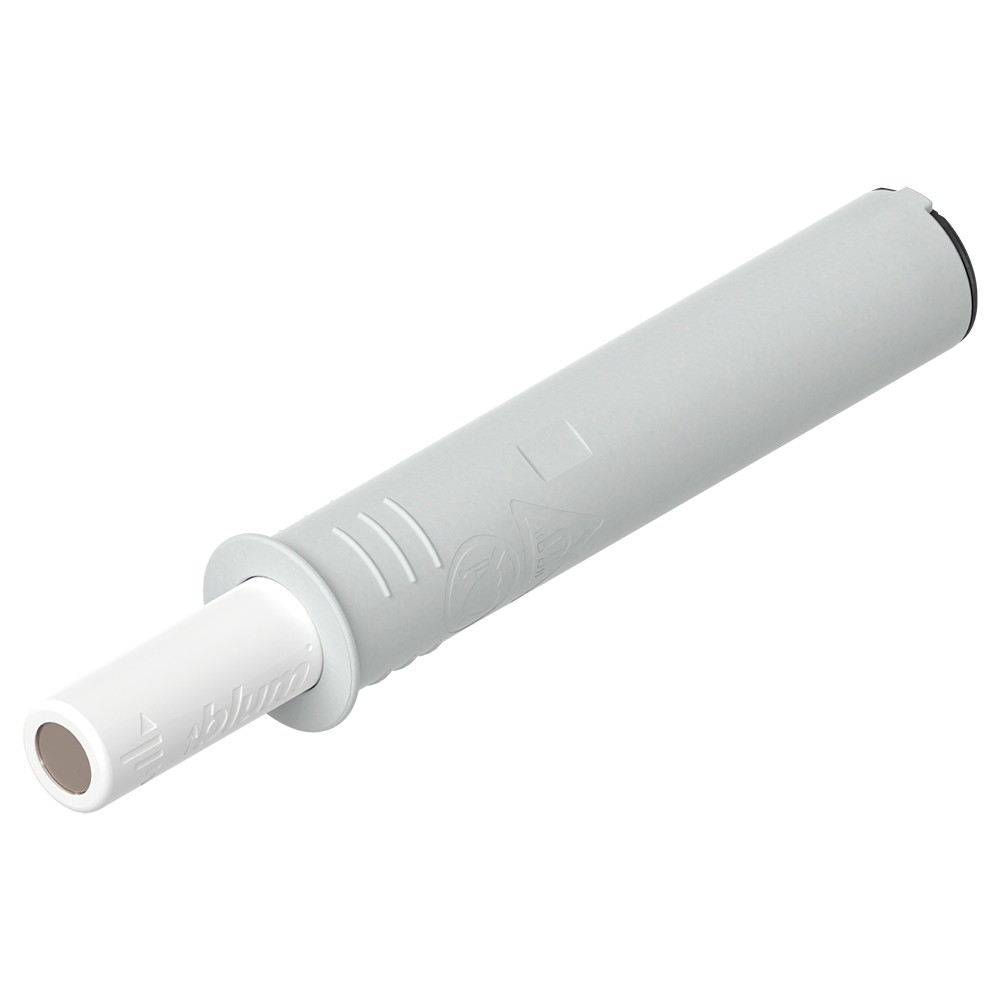

Blum Tip-on, short, for doors up to 1300 mm, white

Blum Tip-on for doors up to 1300 mm high with magnet and metal plate.

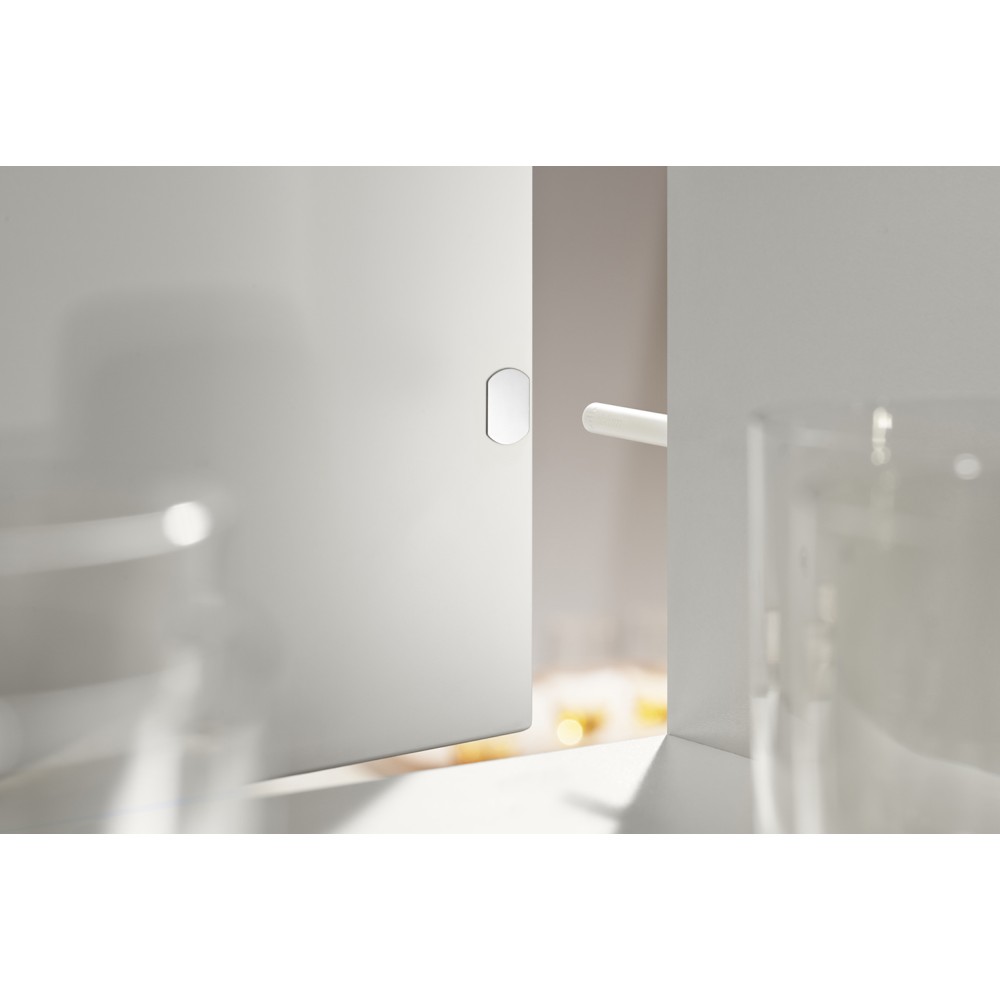

The tip-on is installed by drilling with gluie on plate. It serves to eject a furniture door that does not have a handle - it opens with a push. It is installed with ejector hinges or hinges without spring (Tip-on hinges).

Trigger path: 1.5 mm

Triggering force: 19 N

Adjustment: -1 mm / +4 mm

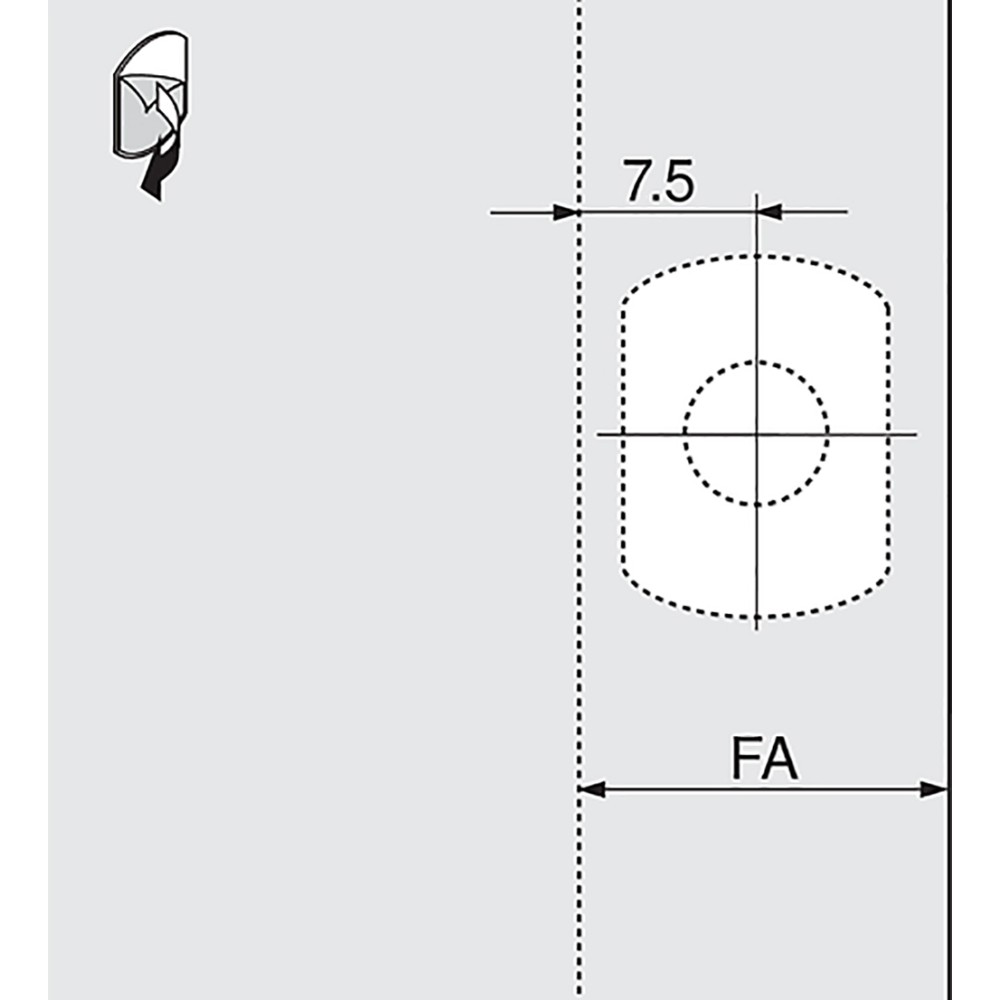

It is fixed by drilling into the side. Suitable for drilling into a side with a thickness of 18 mm (hole for the tip-on Ф 10 mm)

An adapter (body) can be purchased separately for external installation (not to drill into the side).

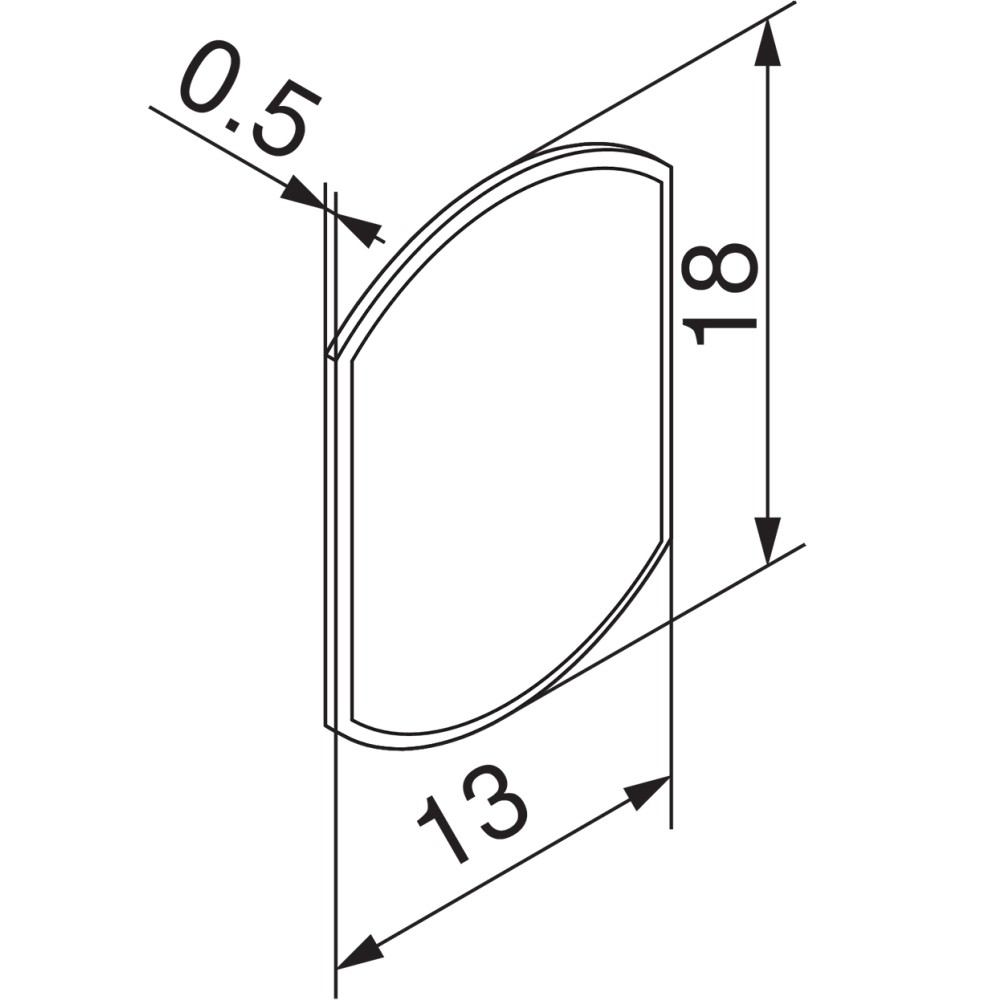

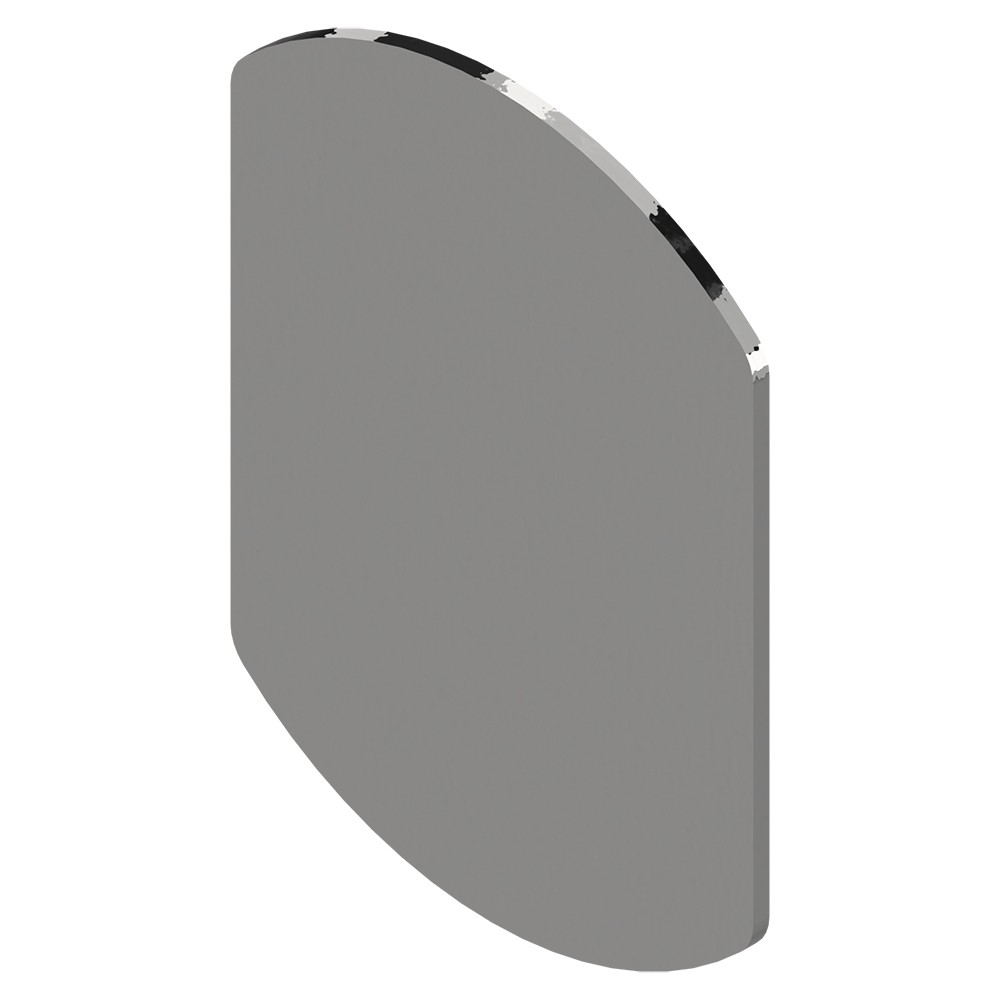

In the set: Tip-on (short - for doors up to H 1300 mm) - 1 piece and metal plate for gluing - 1 piece.
